Robovect Airy LiDAR
96-beam / Device Only
$1,099.00
Skip to product information
RoboSense

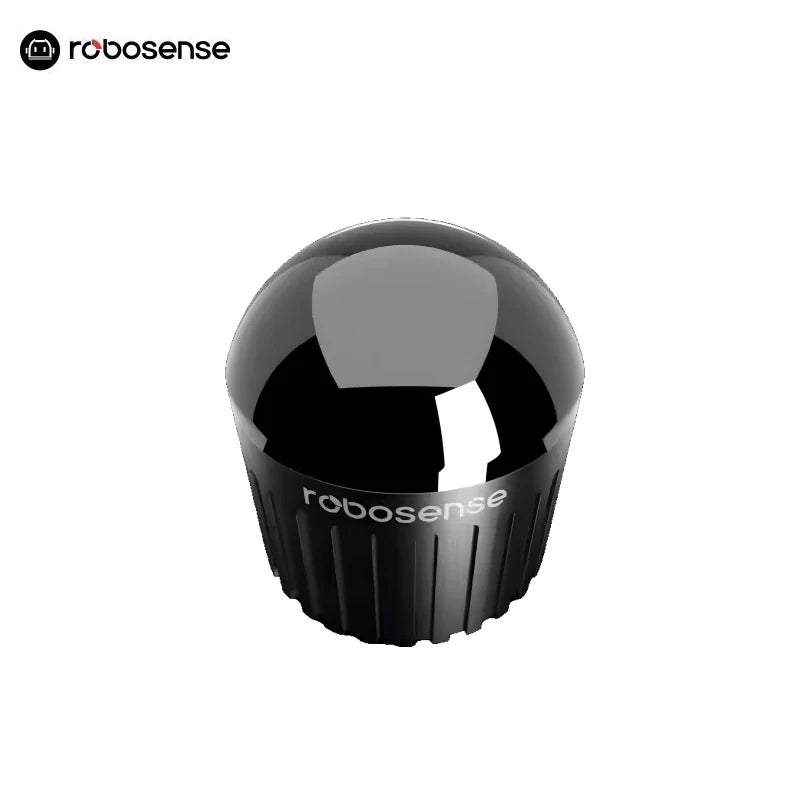

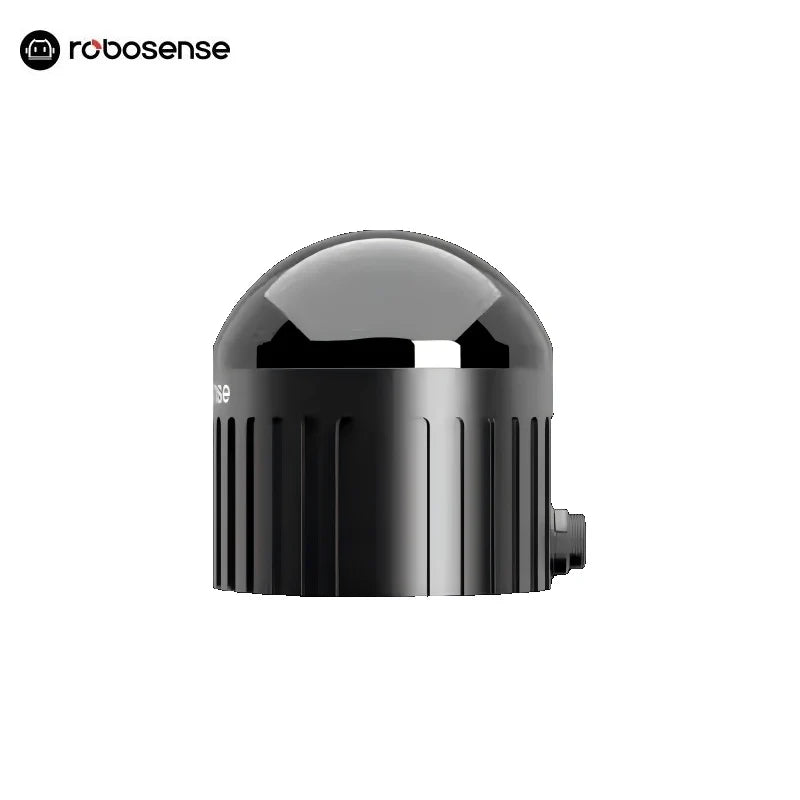

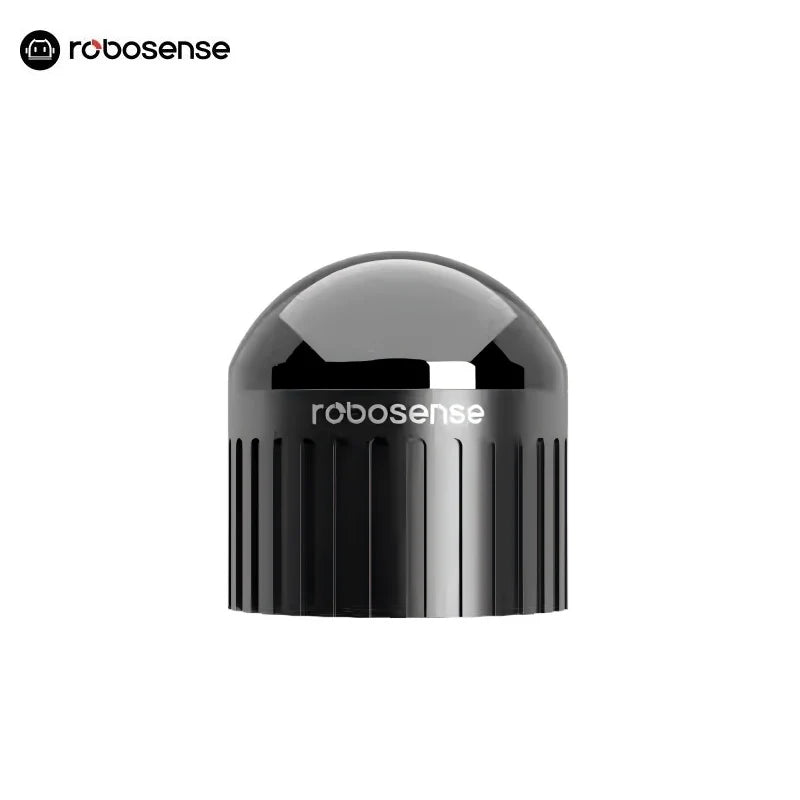

Robovect Airy LiDAR
$1,099.00
- Mini size for flexible robot design

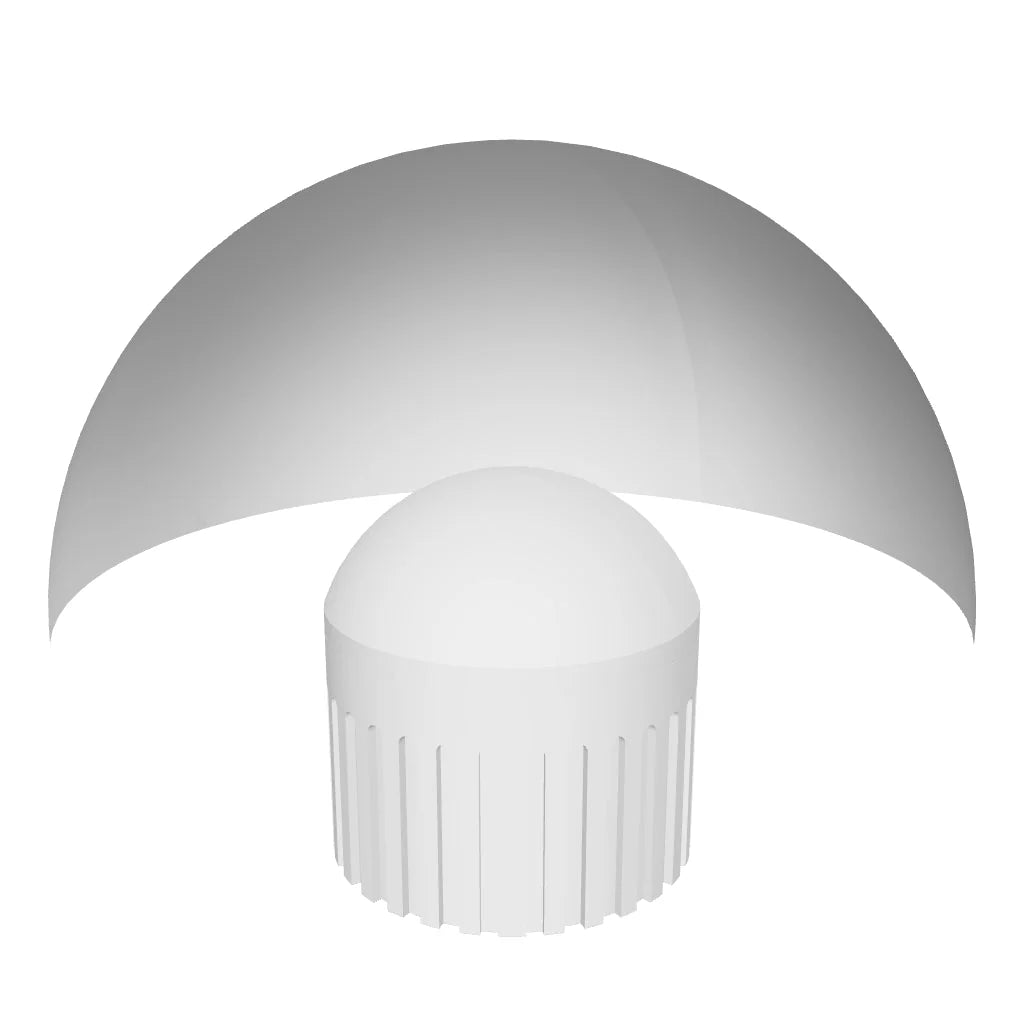

- Hemispherical FOV, full-field coverage: 360°x90°
- Ultra HD point cloud (single return): ~860,000 pts/s (96-beam), ~1,720,000 pts/s (192-beam)
- High precision: 1.5cm @ 1σ
- Integrated IMU
Pay with Ease
Delivery & shipping⌃
- Incoterms DDP (Delivered Duty Paid) applies where available; duties and import taxes are calculated at checkout.
- Shipping options and delivery timing are confirmed for the destination during checkout.
- For integration or volume orders, contact us before purchasing for a project delivery quote.
Description
Application scenarios
- Humanoid robots
- Robotic arms
- Exoskeletons
- Quadruped robots
- AGV platforms
- Autonomous mobile robots
Technical specifications
| Parameter | Value |
|---|---|
| Range | 30 m @ 10% reflectivity |
| Maximum range | 60 m |
| Field of view (H × V) | 360° × 90° |
| Angular resolution (H × V) | Average 0.4° × 0.47° |
| Frame rate | 10 Hz |
| Points per second | Up to 1,720,000 pts/s (192-beam) |
| Ethernet connection | 100Base-TX |
| Dimensions | Ø60 mm × H63 mm |
| Weight (without cabling) | <240 g |
| Operating temperature | −40°C to +60°C |
| Time synchronization | GPRMC with 1PPS, PTP & gPTP |
| Beam options | 192 / 96 / 48 |
| Accuracy | ±1.5 cm |
| Blind spot | <0.1 m |
| Laser safety | Class 1 eye safety |
| Power consumption | <8 W |
| Operating voltage | 9 V to 32 V |
| Storage temperature | −40°C to +85°C |
| Output | UDP packets over Ethernet |
| UDP packet data | Spatial coordinates, intensity and timestamps |
| Ingress protection | IP67, IP6K9K |
Technical documents
Download the current 3D model, product introduction, user manual and mechanical drawings for your project.
Request documents ↗
